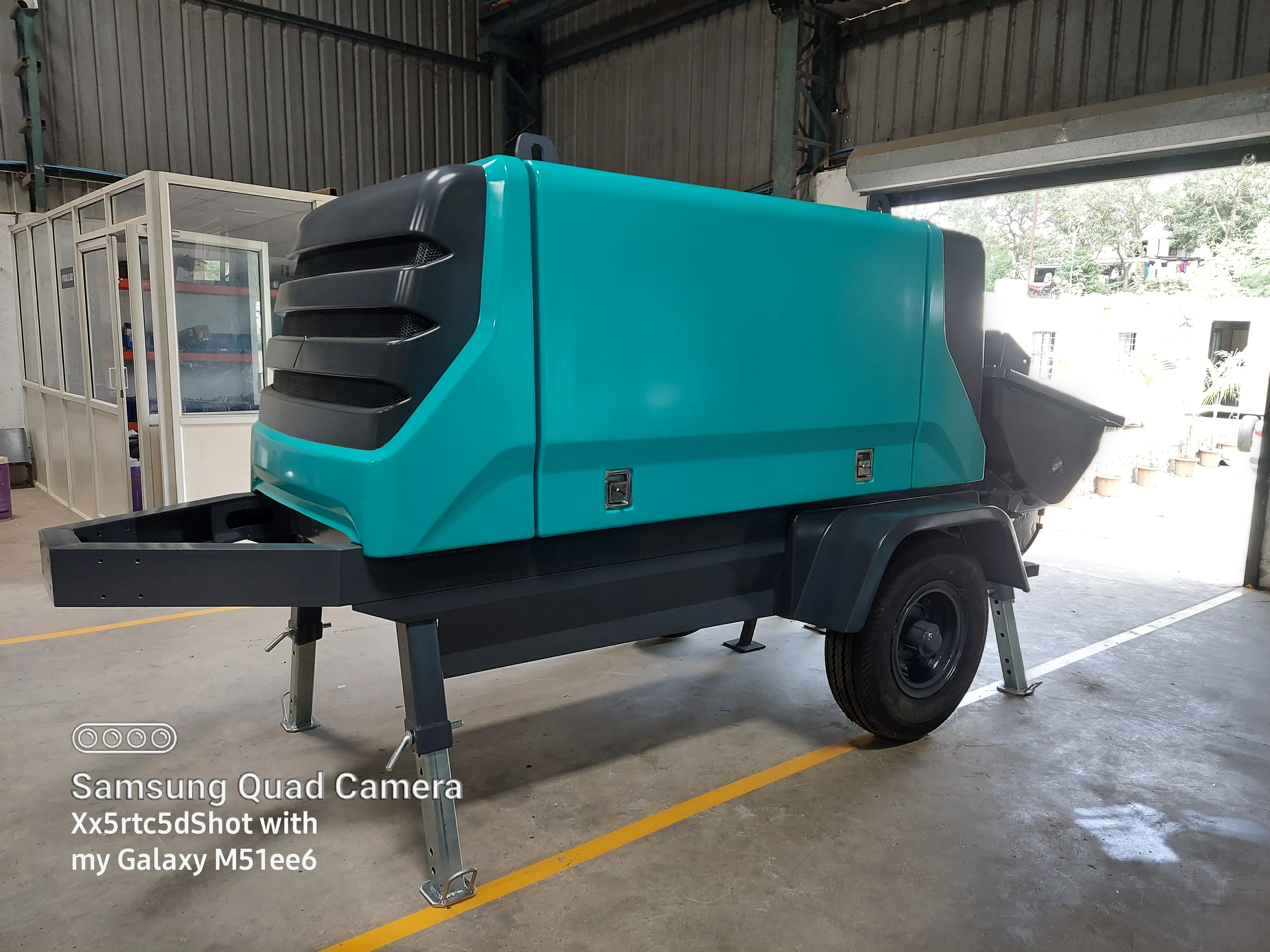

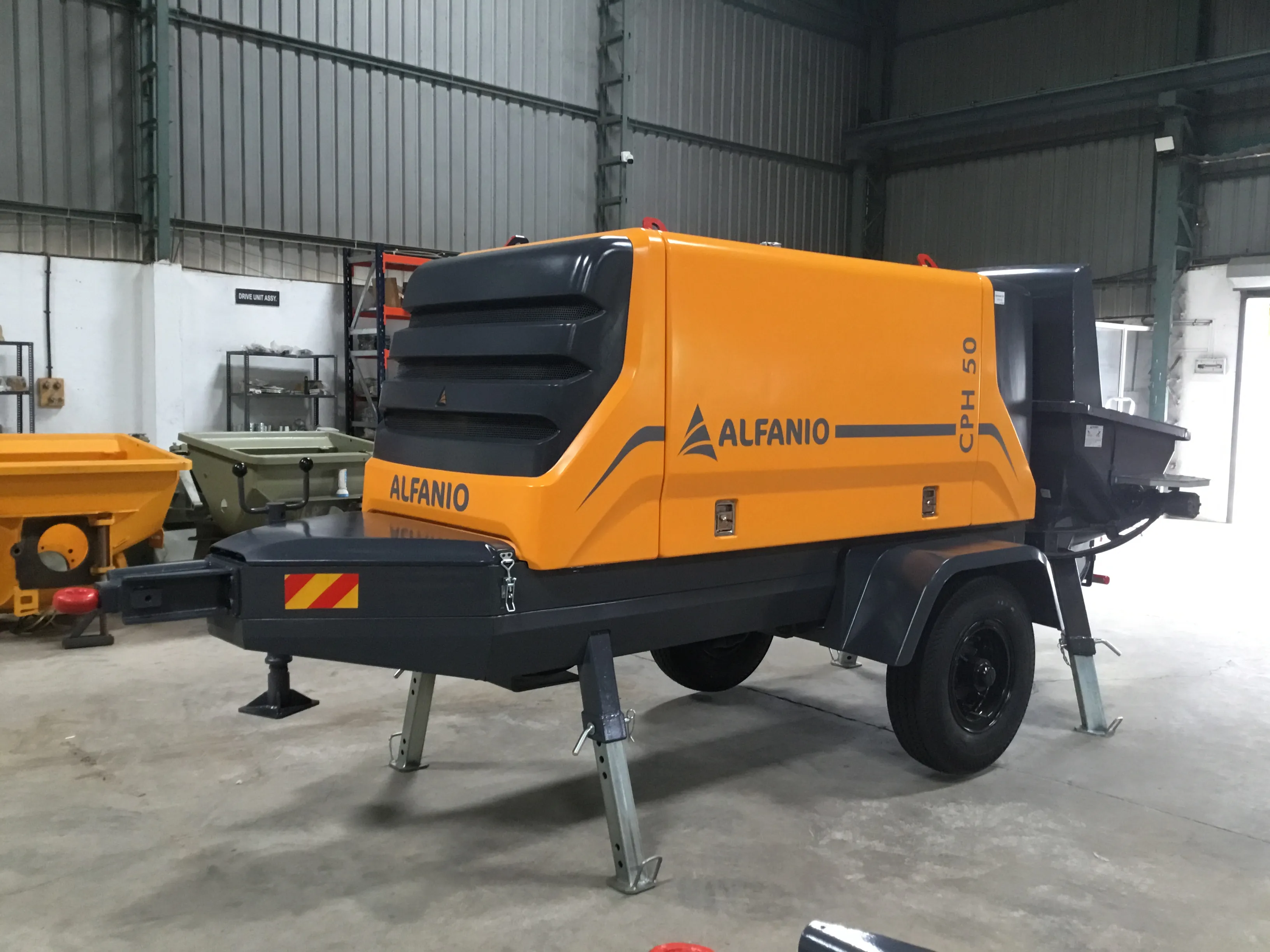

The CPH series concrete pumps are built to handle harsh working conditions and have proven their reliability globally, performing non-stop for the past 4 years. They can also be supplied with specialized wear parts for regions with a history of high wear and tear.
| MODEL | CPH40 | CPH50 | CPH60 | CPH70 | CPH70 HRX | 140/0 HPX | CPH70E | CPH70EHRX |
| Engine Power(HP) | 65.7 | 65.7 | 65.7 | 109.9 | 181 | 181 | 120.6 | 147.5 |
| RPM | 2300 | 2300 | 2400 | 2400 | 2400 | 1400 | 1400 | |
| Output (Rod End)(m³/hr) | 45 | 50 | 54 | 71 | 71 | 58 | 42 | 42 |
| Output (Head End)(m³/hr) | 30 | 34 | 36 | 48 | 48 | 39 | 28 | 28 |
| Strokes/Minute (Rod End) | 34 | 27 | 20 | 27 | 27 | 24 | 15.8 | 15.8 |
| Strokes/Minute (Head End) | 23 | 18 | 14 | 18 | 18 | 18 | 10.6 | 10.6 |
| Concrete Pressure (Rod End)(bar) | 56.9 | 61.0 | 61.0 | 71.1 | 71.1 | 87.8 | 71.1 | 71.1 |
| Concrete Pressure (Head End)(bar) | 84.7 | 90.8 | 90.8 | 105.9 | 105.9 | 130.7 | 105.9 | 105.9 |
| Pumping Cylinder Dia(mm) | 200 | 200 | 200 | 200 | 200 | 180 | 200 | 200 |
| Pumping Cylinder Length(mm) | 700 | 1000 | 1400 | 1400 | 1400 | 1400 | 1400 | 1400 |
| Hydraulic Pressure(bar) | 280 | 300 | 300 | 350 | 350 | 350 | 350 | 350 |
| Hopper Capacity(Liters) | 500 | 500 | 500 | 600 | 600 | 500 | 600 | 500 |
| Max Length/Height(meter) | 400/80 | 450/120 | 500/125 | 600/150 | 800/200 | 1000/250 | 600/150 | 800/200 |
