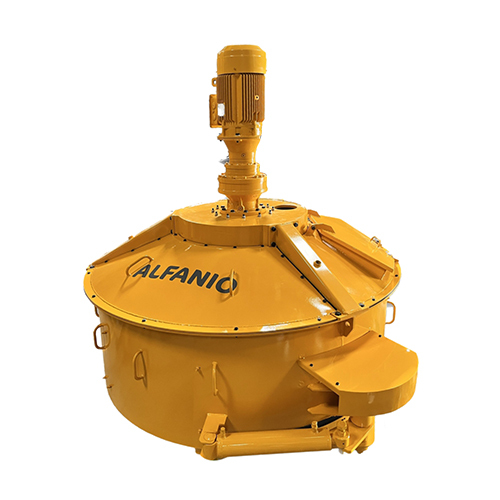

The APM Series Planetary Concrete Mixer is an advanced and reliable concrete mixer designed for construction and industrial applications. This mixer is ideal for small concrete batching plants up to 30m³, and is particularly popular in paver block and precast pipe manufacturing plants. They are preferred by OEMs due to their extensive mixing capability even with a low water content of @30% in concrete. The mixers feature a unique design that allows easy access to the mixer tank for cleaning purposes after the shift is over, making maintenance and cleaning highly efficient.
| MODEL | APM 300 | APM 500 | APM 600 | APM 1000 |
| Dry Filling Capacity(liters) | 450 | 750 | 900 | 1500 |
| Compacted Output(liters) | 300 | 500 | 600 | 1000 |
| Weight(Kg) | 750 | 1225 | 1475 | 2450 |
| Mixing Time(secs) | 30 | 30 | 30 | 30 |
| Discharge Time(secs) | 20 | 20 | 20 | 20 |
| Max. size of Aggregate(mm) | 20 | 40 | 40 | 80 |
| Mixing Motors(Kw) | 1 x 11 kW | 1 x 18.5 kW | 1 x 22 kW | 1 x 37 |
| Hyd. Power pack motor(kW) | 1.5 | 1.5 | 1.5 | 1.5 |
| Aggregate Skip motor(kW) | 5.5 | 5.5 | 5.5 | 11 |
